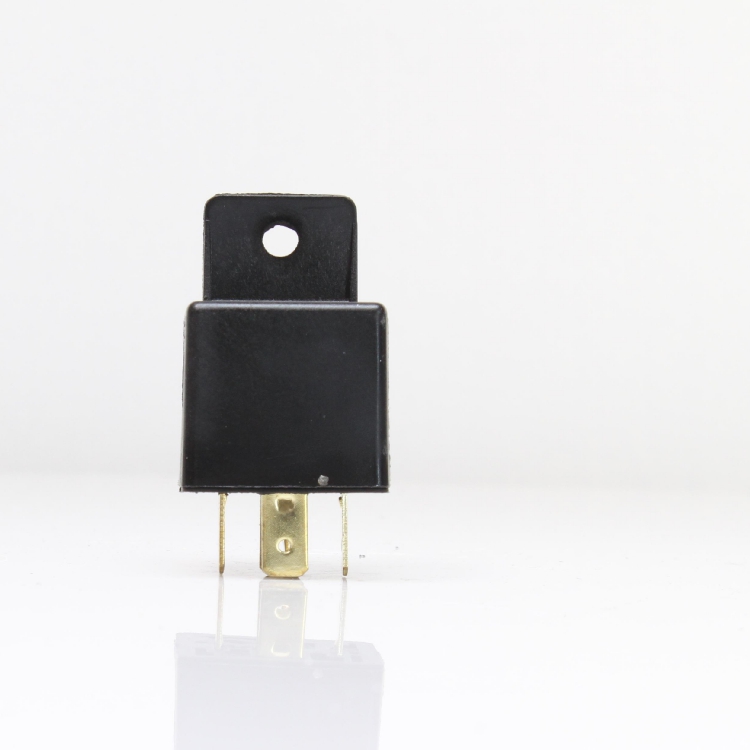

Heavy Duty 40A 12V DC 5-Pin SPDT Relay with Mounting Tab Universal 12 Volt Wiring for any Vehicle - Works with Actuators Solenoids Keyless Entry Car Alarm or any other Electric Automotive Accessory

Heavy Duty 40A 12V DC 5-Pin SPDT Automotive Relay with Mounting Tab Universal

Keep It Clean Wiring Accessories | KICRA1000 | SKU: 11048

In Stock

× 1 / 12
1 / 12

$19.95

  • 40 Rush Amps
    • 40 Rush Amps
    • 80 Rush Amps
    • -- No Selection --



Description

Keep It Clean's heavy duty 40-amp automotive relays are your best choice for all your 12V needs. Designed to handle both normal and high automotive currents, Keep It Clean's single pole double throw 40-amp relays will never get stuck or short out.

Includes 40A, 5-Pin, 12V relay with water resistant sealed case, and convenient mounting tab for 1/4” fastener.

Professionally tested and certified for a long life of smooth operation at any temperature. Up to 50,000+ cycles.

Keep It Clean relays are ideal for controlling any 12V accessory such as; Power Door Lock Actuators, Power Trunk/Hood/Hatch Solenoids, Linear Actuators, Air Compressors, Cooling Fans, Headlight Controllers, Power Windshield Wipers, and more!

This SPDT relay / electromagnetic switch consists of:
Coil Terminals :: 85 and 86
Common Terminal :: 30
Normally Closed Terminal :: 87a
Normally Open Terminal :: 87

When the coil of an SPDT relay is at rest (not energized), the common terminal (30) and the normally closed terminal (87a) have continuity. When the coil is energized, the common terminal (30) and the normally open terminal (87) have continuity.

For easier wiring, we recommend adding a 5 pin relay socket harness plug when installing your relay. Keep It Clean's 12" Relay Sockets are the ideal fit for the Keep It Clean 40-amp relay. Simply plug the relay into the Plug n Play relay socket, and you’ve just saved yourself hours of wiring time.

Includes Free Live USA Technical Support and a Limited Lifetime Warranty.

Features

  • Peak Amps :: 40
  • Voltage :: 12v DC
  • Terminals :: 5
  • Terminal Type :: Blade
  • Retention Spring :: 2X
  • Contact Style :: SPDT (Single Pole, Double Throw)
  • Contact :: Brass
  • Designed For :: Heavy Duty Operation
  • Quality :: Heavy Duty
  • Power Consumption :: Low
  • Low Heat :: Yes
  • Sealed Case :: Water Resistant
  • Compact Size :: Yes
  • Relay Height :: 2.125" (54mm)
  • Relay Height without Mounting Tab :: 1.5" (38mm)
  • Relay Width :: 1.125" (29mm)
  • Relay Depth :: 1.25" (32mm)
  • Tab Height :: 0.625" (19mm)
  • Mounting Style :: Tab Hole .25" (6.3mm)
  • Terminal Height :: 0.432" (11mm)
  • Terminal Width :: 0.250" (6mm)
  • Quantity :: Each (1)
  • Wiring Harness Included :: No
  • Installation :: Easy with Basic Tools
  • Instructions :: Detailed Instructions
  • Warranty :: Limited Lifetime Warranty
